Anytime Front Parking Camera For 2014-2024 Toyota Models

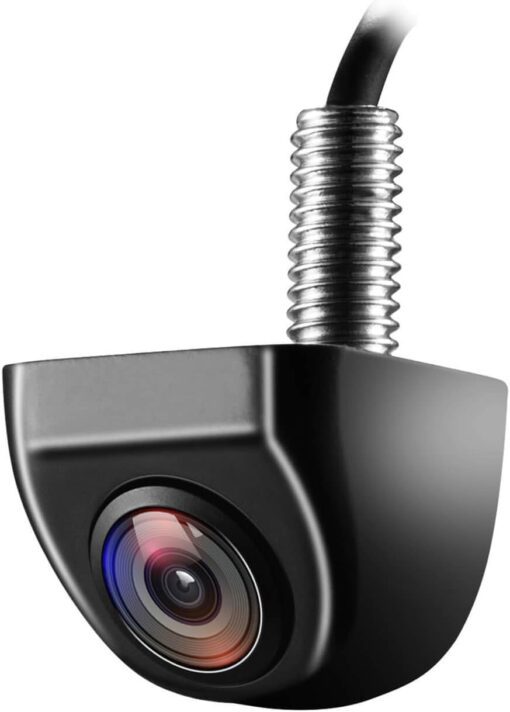

The Premium Camera is offered due to popular demand for a higher quality camera, The camera can be mounted either Vertically or Horizontally which will give you more flexibility when finding a place to mount your camera. The camera also comes with three wedges which will allow you to change the camera’s viewing angle, again giving you more control of your installation.
Vertical Mount
Horizontal Mount
The camera will have three wire loops on the camera wire, Green, White, and Purple. Cutting the wires will do the following:
Green – Remove Guidelines
White – Mirror Image (For Front Facing applications
Purple – Flip Image (For Horizontal mounting)

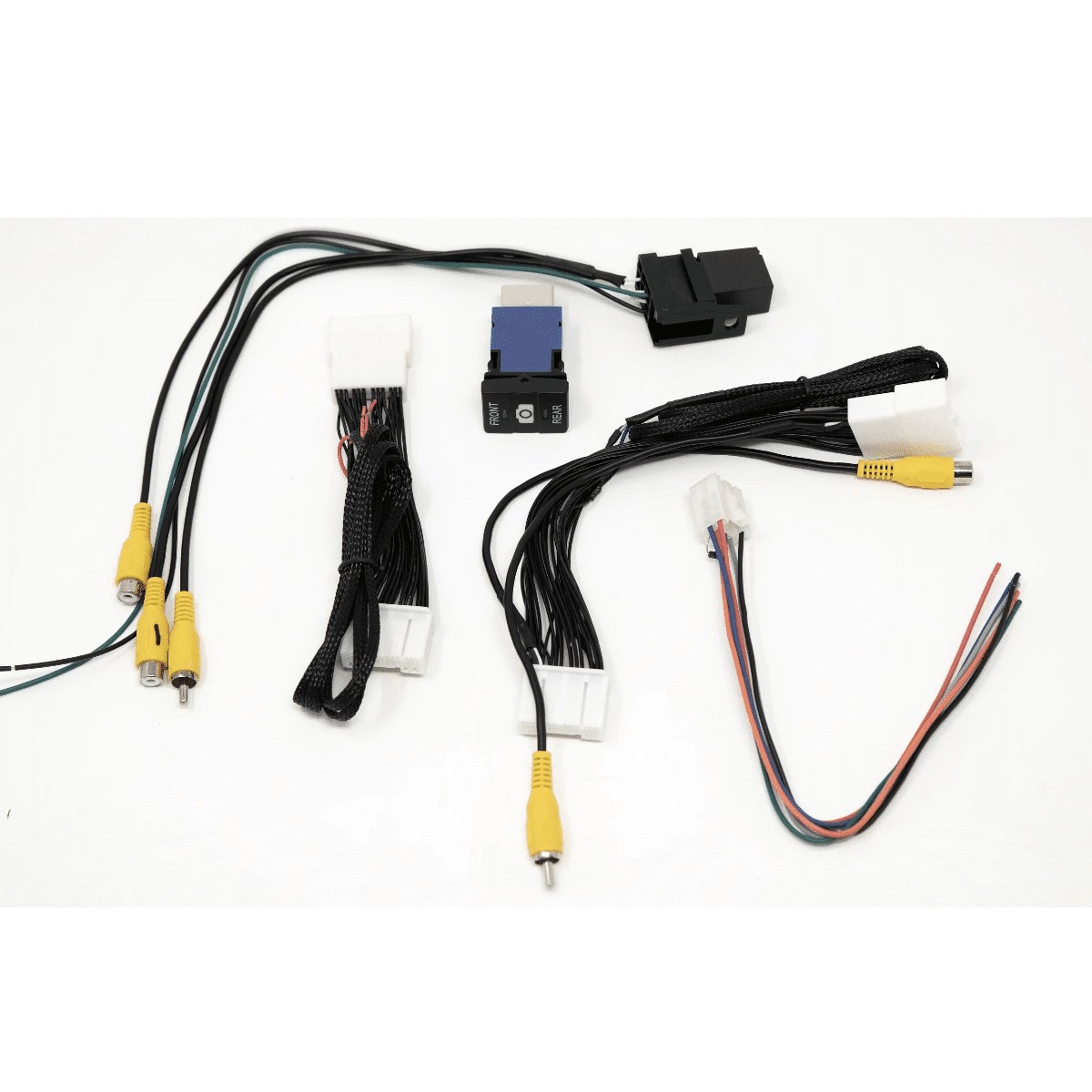

1x – Anytime Backup Camera Override Harness (Orange and Red Wires)
1x – Anytime Backup Camera RCA video harness (Two Yellow RCA MF and Blue/Gray Wires)
1x – RCA Video switching relay (Three Yellow RCA MFF and Green/Black wires)
1x – OEM Style Single Pole Double Throw (SPDT) Front/Rear Switch with Harness*

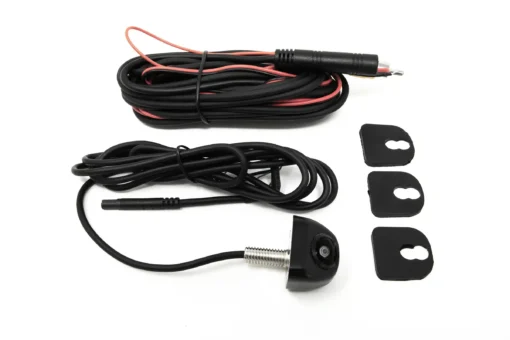

1x – Front/Rear-facing Camera
