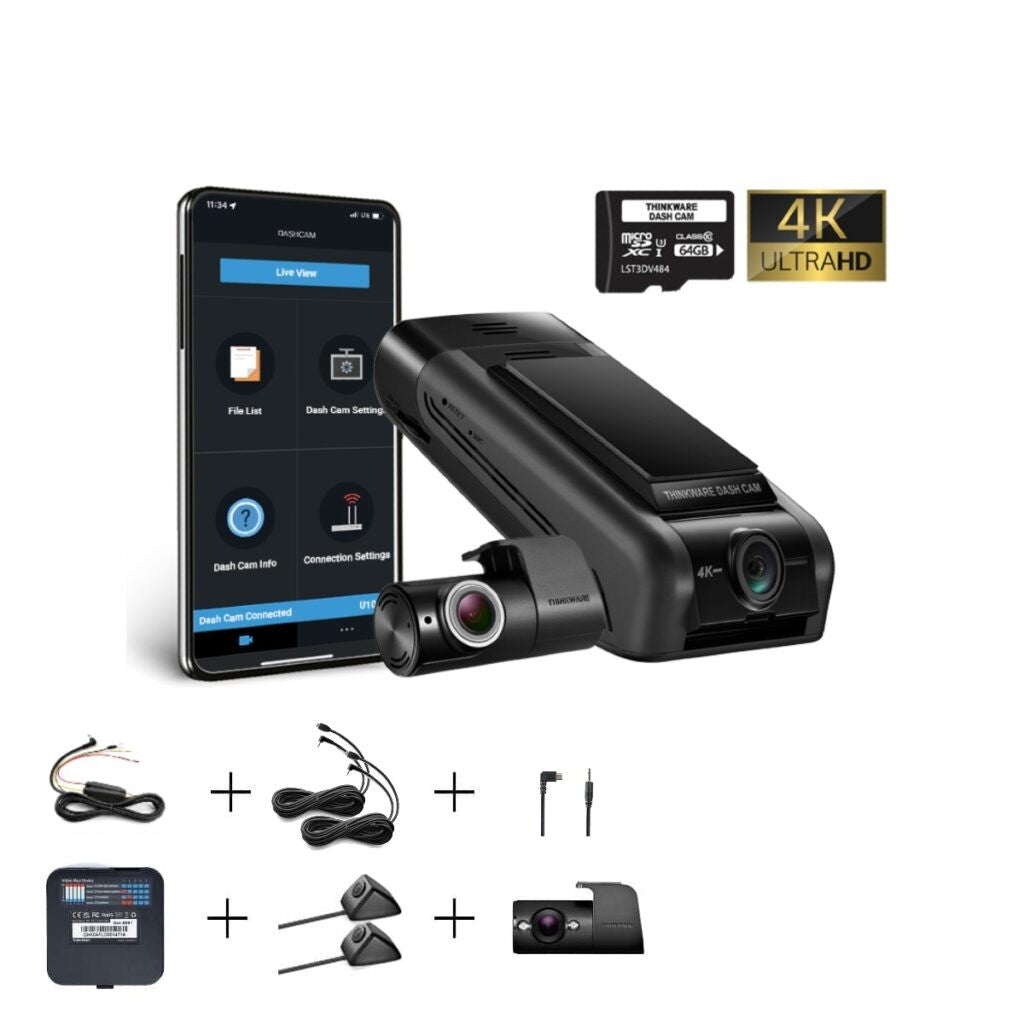

Thinkware U1000 Plus 4K Dash Cam 5-CH Bundle #1
Thinkware U1000 Plus 4K Dash Cam 5-CH Bundle #1 with Multiplexer
The Thinkware U1000 Plus 4K Dash Cam 5-CH Bundle #1 is a comprehensive multi-channel surveillance system that transforms your vehicle into a fully monitored environment with 4K front recording and five total camera inputs. This advanced dash cam bundle captures crucial road and interior footage, making it ideal for rideshare drivers, fleet managers, or anyone seeking extensive vehicle security.
5-Channel Surveillance System: Total Vehicle Coverage with Multiplexer
This Thinkware U1000 Plus bundle includes a Multiplexer Box accessory that transforms the primary dash cam into a multi-channel surveillance system. It integrates an interior infrared camera, two exterior side cameras, and an exterior infrared camera, offering comprehensive 5-channel video coverage. This setup provides peace of mind for monitoring all angles of your vehicle, both inside and out. It is perfect for larger vehicles like trucks, RVs, and trailers, where blind spots are a concern.
4K UHD Front Recording: Sony STARVIS IMX515 Sensor
The Thinkware U1000 Plus front camera delivers 4K UHD recording at 30fps, powered by a high-performance Sony STARVIS IMX515 sensor and Ambarella H22A67 CPU. Users can also adjust the front resolution to 2K at 60fps for smoother video playback and enhanced license plate readability. This ensures superior video quality for capturing critical details on the road. The rear camera records in 1080p Full HD, providing clear coverage behind the vehicle.
Super Night Vision 3.0: Enhanced Low-Light Performance
Super Night Vision 3.0 technology ensures exceptionally bright and clear footage in challenging low-light conditions. Utilizing advanced ISP technology, it captures crucial details in true-to-life colors with minimal noise. This feature significantly improves visibility in dark alleys, dimly lit parking lots, or during nighttime driving. The enhanced sensitivity provides reliable recording when ambient light is scarce.
Smart Auto-Exposure (AE) & HDR: Optimized Image Clarity
Smart Auto-Exposure (AE) automatically optimizes video exposure, ensuring clear footage in varying light conditions, even against bright sunlight or intense headlight glare. Complementing this, High Dynamic Range (HDR) technology uses multi-exposure processing to balance exposure in high-contrast scenes. Together, these features preserve image detail, providing consistently clear recordings in diverse lighting environments. Drivers benefit from reliable video evidence regardless of time of day or weather conditions.
Parking Surveillance Mode: Comprehensive Vehicle Protection
This Thinkware dash cam automatically activates its comprehensive Parking Surveillance Mode when the ignition is turned off. It captures crucial footage to provide video evidence of incidents like hit-and-runs while your vehicle is parked. The system offers multiple modes, including Energy Saving Mode 2.0, Time Lapse, and Radar Parking (with optional module), to cater to various surveillance needs. Professional installation of the included hardwiring cable is recommended for continuous parking mode operation.
Radar Parking Module Compatibility: Extended Low-Power Surveillance
For enhanced parking protection, the U1000 Plus is compatible with an optional radar module, enabling Radar Parking mode. This feature uses low-power front radar to monitor motion, providing extended surveillance with minimal power consumption. When motion is detected, the dash cam wakes up to record; a 20-second video (10 seconds before and 10 seconds after) is saved upon impact. If no impact occurs, no footage is saved, conserving power effectively.
Wi-Fi Device Pairing: Dual-band Connectivity and App Control
The U1000 Plus features dual-band Wi-Fi (2.4 GHz and 5 GHz) for superior and reliable connectivity with your smartphone or tablet. Easy Wi-Fi device pairing via the THINKWARE DASH CAM LINK App (compatible with Android and iOS) allows for seamless adjustments to dash cam settings. Users can also replay and download their latest driving videos directly to their device, enabling quick access to footage on the go. The 5 GHz band offers faster file transfers in suitable environments.
THINKWARE CONNECTED: Remote Monitoring and Notifications
When connected to the internet via a mobile hotspot or Wi-Fi, the THINKWARE CONNECTED app provides remote access and notifications for your vehicle. Users receive impact notifications while driving or parked, can send emergency messages, and utilize Remote Live View to see what's happening around their vehicle. The app also displays vehicle status and driving history, making it an essential tool for remote vehicle security and monitoring. Carrier data charges may apply for internet usage.
Advanced Driver-Assistance Systems (ADAS): Enhanced Road Safety
The U1000 Plus incorporates advanced driver-assistance systems (ADAS) to enhance road safety. These include Front Vehicle Departure Warning (FVDW), which alerts drivers when the vehicle ahead moves from a stop. The Forward Collision Warning System (FCWS) warns when the following distance is too close at speeds over 40 km/h. Additionally, the Lane Departure Warning System (LDWS) alerts drivers if the vehicle drifts from its lane when driving over 50 km/h, helping prevent potential accidents.
Thermal Protection: Reliable Operation in Extreme Temperatures
Equipped with built-in supercapacitors and thermal sensors, the Thinkware U1000 Plus ensures reliable performance and safety even under extreme temperature conditions. This robust thermal protection system helps prevent damage from overheating and ensures stable operation across a wide environmental range. It provides peace of mind that the dash cam will function correctly in diverse climates. The design prioritizes durability and consistent recording capability.
Exterior Side View Camera: IP68 Blind Spot Coverage
This bundle includes a low-profile, IP68-rated Exterior Side View Camera designed to cover vehicle blind spots. It records events in Full HD, providing clear and detailed footage of areas often missed by standard dash cam setups. The IP68 rating ensures the camera is weatherproof and resistant to dust and water, making it suitable for exterior mounting in various conditions. This enhances overall surveillance and driving safety.
Frequently Asked Questions
What is included in the Thinkware U1000 Plus 5-CH Bundle #1 with Multiplexer?
This bundle includes the Thinkware U1000 Plus Dash Cam, a rear view camera, a hardwiring cable, rear cam cable, spare 3M mounting tape, windshield mount, and a 64GB MicroSD card. Additionally, it contains the Multiplexer Box accessory, two exterior side cameras, one interior infrared camera, a Thinkware Rear Camera Cable, a Thinkware Accessory Camera Adaptor for U1000 Plus, and a Multiplexer Box Cable for U1000 Plus.
Does this Thinkware dash cam record while the vehicle is parked?
Yes, the Thinkware U1000 Plus features Parking Surveillance Mode which activates automatically upon ignition off. This mode provides various options like Energy Saving Mode 2.0, Time Lapse, and Radar Parking (with an optional module), capturing incidents while your vehicle is unattended. It requires the included hardwiring cable or an optional OBD II cable for continuous power.
What is the purpose of the Multiplexer Box in this bundle?
The Multiplexer Box transforms the U1000 Plus into a multi-channel surveillance system, enabling it to connect and record from additional cameras. In this bundle, it integrates an interior infrared camera and two exterior side cameras, providing comprehensive 5-channel coverage for your vehicle. The Multiplexer Box cannot record footage independently; it must be connected to a compatible Thinkware Dash Cam.
Is professional installation recommended for this dash cam bundle?
Yes, professional installation is recommended for the Thinkware U1000 Plus 5-CH Bundle, particularly for the hardwiring cable required for parking surveillance mode. While the dash cam system can be self-installed, a professional ensures proper wiring for all five cameras and the multiplexer, optimizing performance and vehicle battery protection.
Does the U1000 Plus operate reliably in extreme temperatures?
Yes, the Thinkware U1000 Plus is designed for reliable operation in extreme temperatures. It is equipped with built-in supercapacitors and thermal sensors that provide thermal protection, ensuring consistent performance and safety. This design feature helps the dash cam maintain functionality even in very hot or cold conditions, preventing heat-related damage.
Are THINKWARE CONNECTED features available in all parking modes?
No, THINKWARE CONNECTED features are unavailable in Radar Parking Mode. This specific mode turns off all network data functions to reduce power consumption, allowing for extended surveillance. For other parking modes, THINKWARE CONNECTED features such as remote live view and impact notifications are available, provided the dash cam is connected to a mobile hotspot or Wi-Fi with internet access.
Thinkware U1000 Plus 4K Dash Cam 5-CH Bundle #1 with Multiplexer Specifications
| Front Camera Resolution | 4K UHD at 30fps or 2K at 60fps |
| Rear Camera Resolution | 1080p FHD |
| Front Sensor | Sony STARVIS IMX515 |
| CPU | Ambarella H22A67 |
| Video Compression | HEVC (up to 50% more efficient) |
| Wi-Fi Connectivity | Dual-band (2.4 GHz, 5 GHz) |
| Parking Mode Time Lapse | 2fps |
| Impact Recording Length | 20 seconds (10s before, 10s after) |
| Lane Departure Warning Speed | >50 km/h |
| Forward Collision Warning Speed | >40 km/h |
| Exterior Side Camera Rating | IP68 |
| Included MicroSD Card | 64GB |
