Wolfbox USB-C Hardwire Kit for G840S, G930, G910, G850, G900, G840H, i05
$21.99

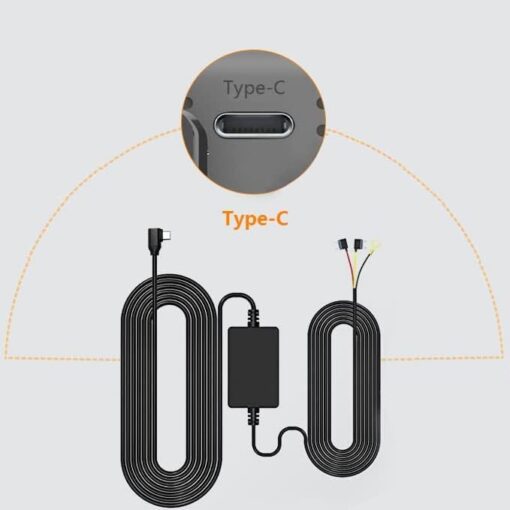

- WIDE CAPACITY: 3.5m hardwire kit for dash cam or other device powered by Type-C port, 5V/2A steady output, voltage input supports from 12V-24V. Compatible with almost all dash cam brands in the market.
- 24/7 Parking Surveillance: Directly to the battery for constant 24hrs/7days power to protect against theft when your car is in the parking lot.
- Power Supply: Directly to the ignition wire for power only so it can turn on and off with the ignition and you don’t have to worry about plugging in the charger, turning the dashcam on, or any such stuff.
- Low voltage protection: It has a smart low voltage protection system that will automatically shut off the power to your dash cam when the battery
- WORRY FREE SERVICES: 1 year free replacement warranty for quality problems.
- Tips: G840S has been upgraded from a Mini-USB port to a Type-C port for power supply, if you don’t know which hardware kit to buy is suitable for your G840S, please contact us.
Wolfbox USB-C Hardwire Kit for G840S / G930 / G910 / G850 / G900 / G840H / i05, Not Suitable for G890

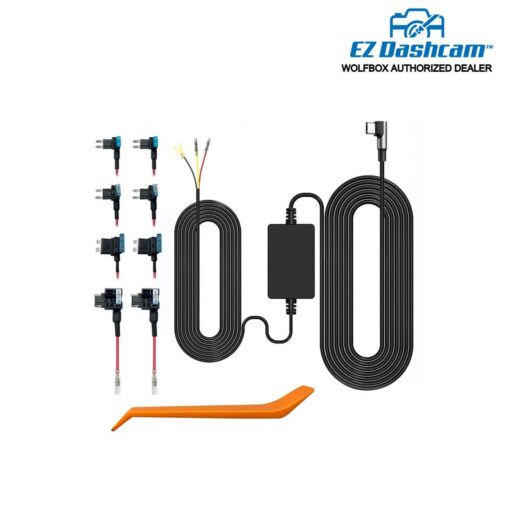

WOLFBOX Hardwire Kit
Warm tips:
1. Please make sure the ACC and BAT are connected correctly.
2. The length of this hardwire kit is 11.5ft, suitable for most trucks, SUVs, and other vehicles.
3. Please note that installation steps may vary by vehicle model and specific conditions. It is strongly recommended to refer to the vehicle manual or seek professional help before installation.
Time-lapse function:
After the WOLFBOX mirror dash cam is connected to this dedicated hardwire kit, and when the time-lapse function is turned on, the camera will enter the time-lapse recording function automatically when the car engine is off. In this mode, it records one frame per second, which extremely saves power and capacity, you don’t need to worry about draining out of the car battery. This is because when the car engine is off, the ACC will have no power, and the dash cam will detect it and change the recording mode from normal to time-lapse.

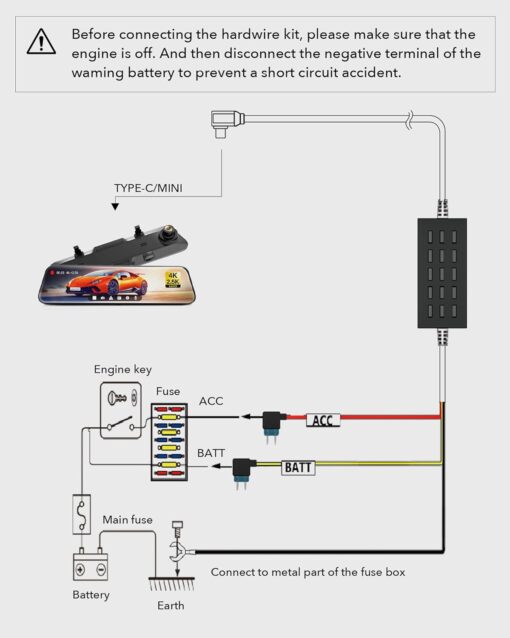

Instructions for installation:
1. Stop the engine.
2. Open the fuse box.
3. Use a power detector to detect the constant power and ACC power (emergency power). *note: Use an ACC power supply of 15A to 25A. Use a constant power supply below 30A.
4. Connect the yellow fuse to the constant power source, the red fuse to the ACC power source, and the ground terminal (black wire) to the metal part of the body.
|
|
|
|---|---|---|

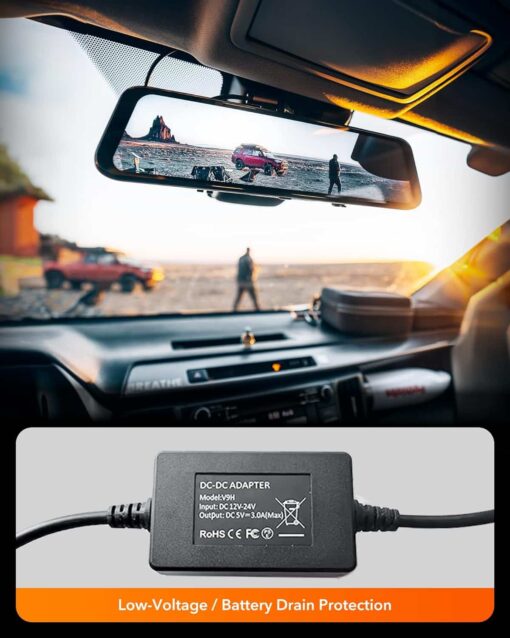

Low Voltage ProtectionEnsure the safety of your vehicle’s battery with the Wolfbox Hardwire Kit, which features a low voltage protection mode that safeguards against voltage drops below 11.8V (±0.2) by automatically cutting off power. | 24H Parking MonitoringThe Wolfbox hardwire kit, when connected to the car’s fuse box power, can provide uninterrupted power to the dash camera for 12/24/48 hours. It is even capable of supplying power when the car is turned off. | Time-lapse recordingTime-lapse recording enables you to capture an extended duration by reducing the number of frames in the video, giving you the ability to watch a complete 24-hour recording in a shorter period of time. |
|
|
|
|---|---|---|
Yellow cable (BATT/B+)The yellow cable should be connected to the fuse of the constant power supply in the car fuse box. If you are looking for a constant power supply in the fuse box: Use a voltage tester to check the fuse to ensure it still has electricity even if the car engine is off. | Red cable (ACC)Connect the red cable supply power only when the car engine starts. Testing method: The tester bulb will light when the engine is on and won’t light when the engine is off. | Black cable (GND)Connect this black cable(GND) to the metal part of the vehicle. Most cars have screws or metal parts next to the fuse box. Connect the black cable to the screw or metal part. (As in the picture below) |
